  1. Validation
  2. Validation Issues View

Filters

PreviousValidation Issues ViewNextValidation Result & Export

When running the validation, it might be possible that some of the components are not subject to further inspection, but still, they are returned as they contain errors. To ease the review of the results, the Validation Issues view can be filtered by multiple criteria.

You can hide/show filters by clicking the collapse/expand button highlighted in a red frame on the screenshot above.

Filter by effective time

Validation issue items can be filtered by publication status. Set an Effective Time range, or click the Unpublished checkbox.

Filter by concept status

This option filters the validation results by the status of the concept of the erroneous components.

Filter by affected component status

This option filters the validation results by the status of the erroneous components.

Filter by affected component module

This option filters the validation results by the module of the erroneous components. Useful when an extension author would like to hide errors that are coming from another extension or the international release.

Issue fetch limit

Users can specify the maximum number of items that should appear in the Validation Issues View per rule. The number set will also have an effect on the number of items loaded when pressing Load more...

Highlighting violations in the Validation Issues View

The Validation Issue View now highlights SNOMED CT Description term-related word violation errors (using a bold font style inside the affected component label). This is to help identify the reason why a description was reported under a specific rule (e.g.: spell-check or dialect rules).

✅

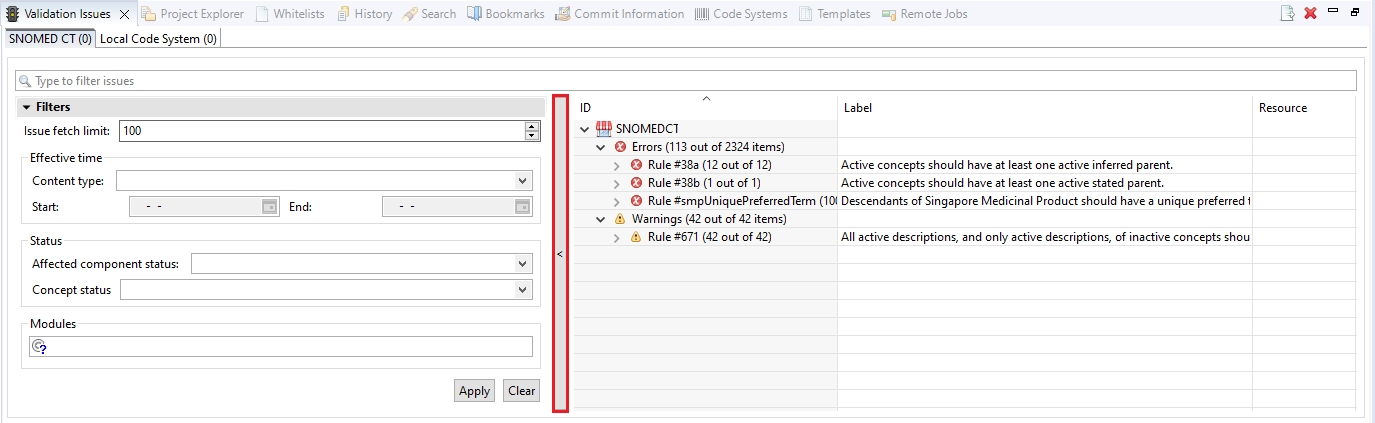

Show Validation issue filter

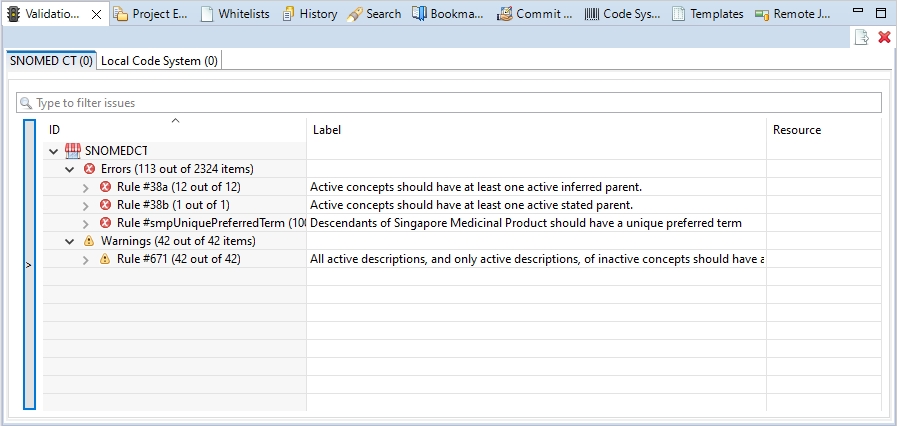

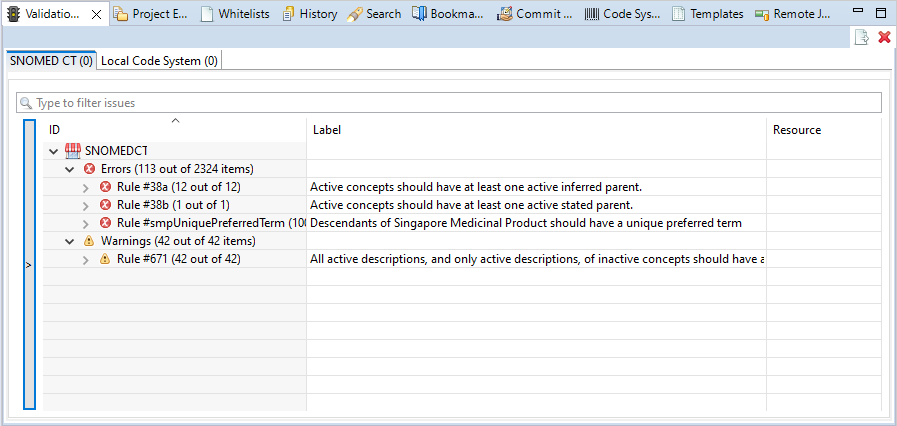

Hidden validation issue filter

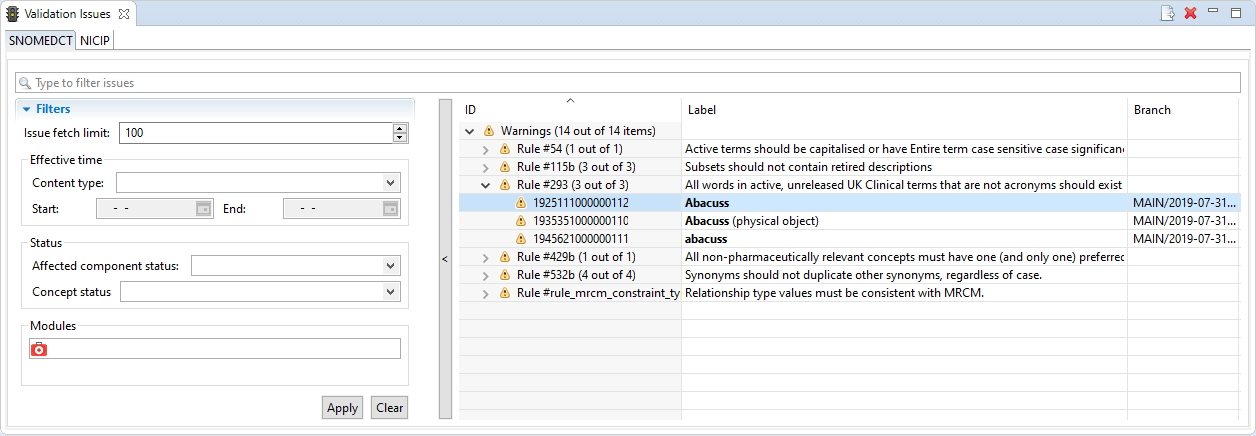

Description term violation highlighted in the Validation issues view
