Views

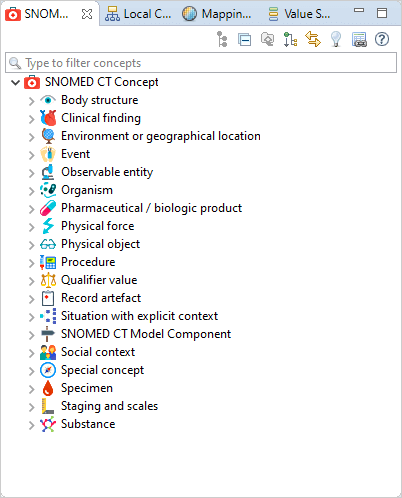

Views support editors and provide alternative presentations as well as ways to navigate through information. For example, the SNOMED CT View displays the structure of the SNOMED CT terminology as a tree of concepts.
The following views are available in Snow Owl:
View | Description |
Displays concepts in a tree structure that reflects their hierarchy | |
Displays ICD-10, (ICD-10-UK, ICD-10-AM, ICD-10-CM) codes in a tree structure | |
Displays the parents of a selected concept. Parents are displayed at the bottom of the tree structure (which is inverse to the way they are displayed in the concept views above) | |
Contains files used for querying, script projects, and other resources | |
Displays the history of a SNOMED CT concept | |
Displays search results | |
Displays errors, warnings, and information messages about the concepts | |
Allows you to bookmark concepts to make it easier to find them again (just like the bookmarks in your Internet browser) | |
Displays the latest changes to the terminology, including the person that made the change and their comment about the change | |
Displays error log file that is useful for troubleshooting | |
Displays Reference Sets grouped by their type | |
Displays Value Sets | |
Displays Mapping Sets | |
Views for other terminologies |
The SNOMED CT, ICD-10, OPCS-4, ATC, LOINC, Value Set, Mapping Set Views are sometimes referred to as concept navigators since they allow navigating through the hierarchy.

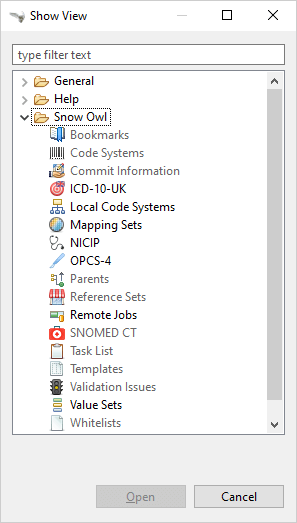

To take a look at all available views, select Window > Show View. To bring up a view that isn't displayed on the user interface, go to Window > Show View > Other > Snow Owl.
Views that are already open are greyed out on the list.
Views have their own menus and toolbars; the actions represented by buttons on the toolbar only affect the items within that view.
You can resize and arrange views by dragging them to different docking positions in the user interface.
When dragging a view, you can see how the perspective would change indicated with grey lines/rectangles.
If you drop the view when rectangles are displayed, the view will be docked as a separate window; if a single line appears next to a view tab, it will be docked as a tabbed notebook.
Views can not be docked in the central area because it is reserved for editors.
