The Task Changes Page displays changes that were made while the task was active. This page is organized into three sections.
Section
Description
Change summary
The Change summary section displays an overview of the number of new, modified, and deleted components.
Changed components
The Changed components section displays a list of changed concepts. Decorators and font color indicate the nature of the change: added, modified, removed. Selecting a concept displays additional detailed information about the change in the right-hand section. Double-clicking on a concept opens the given concept's editor.
Change details
If you are interested in a particular concept, click on the concept in the Changed components section. This will display additional information about the change in the Change details section on the right side.
The Change summary section displays an overview of the number of new, modified, and deleted components between versions. Inactivated components are subsumed as modifications.
The Changed components section displays a list of changed concepts. Decorators and font color indicate the nature of the change:
added
modified
deleted
Selecting a concept displays additional detailed information about the change in the right-hand section.
The Changed components section is limited to reveal a maximum of 50 000 changes. After performing numerous changes on a Task the section might not contain all the changes.

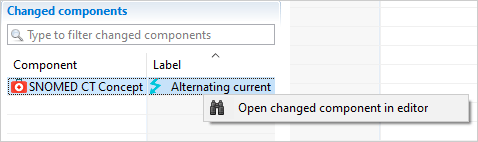

Right-clicking on a changed component in the Task Changes Page allows the user to open the component in its dedicated editor to better review the changes and additional details associated with the component. Double-clicking also opens the relevant concept editor.
Columns can be sorted by clicking on the header, where a small arrow will indicate whether it's in ascending or descending order.
Changed component search
It is now possible to filter task changes by changed components within the Task Editor.
If you are interested in a particular concept, click on the concept in the Changed components section. This will display additional information about the change in the Change details section on the right side, which now contains the following columns:
Change: Type of change (Added/ Changed/Deleted)
Component: Component name
Component type: The type of the changed component (e.g. relationship, concept, Reference Set member)
Property: The property that was changed (e.g. active, effective time)
From: Previous state of the property (e.g. active - true)
To: New state of the property (e.g. active - false)
The columns can be sorted by clicking on the header.
To export change details to DSV format, click on the Export task changes button at the top-right corner on Task Changes Page of the Task Editor.
This will invoke the Change Export Wizard, where users can choose the delimiter and specify the file path for the export file.
