Authoring

The authoring process of Custom Code Systems can flow on two different levels: schema and concept.

Schema

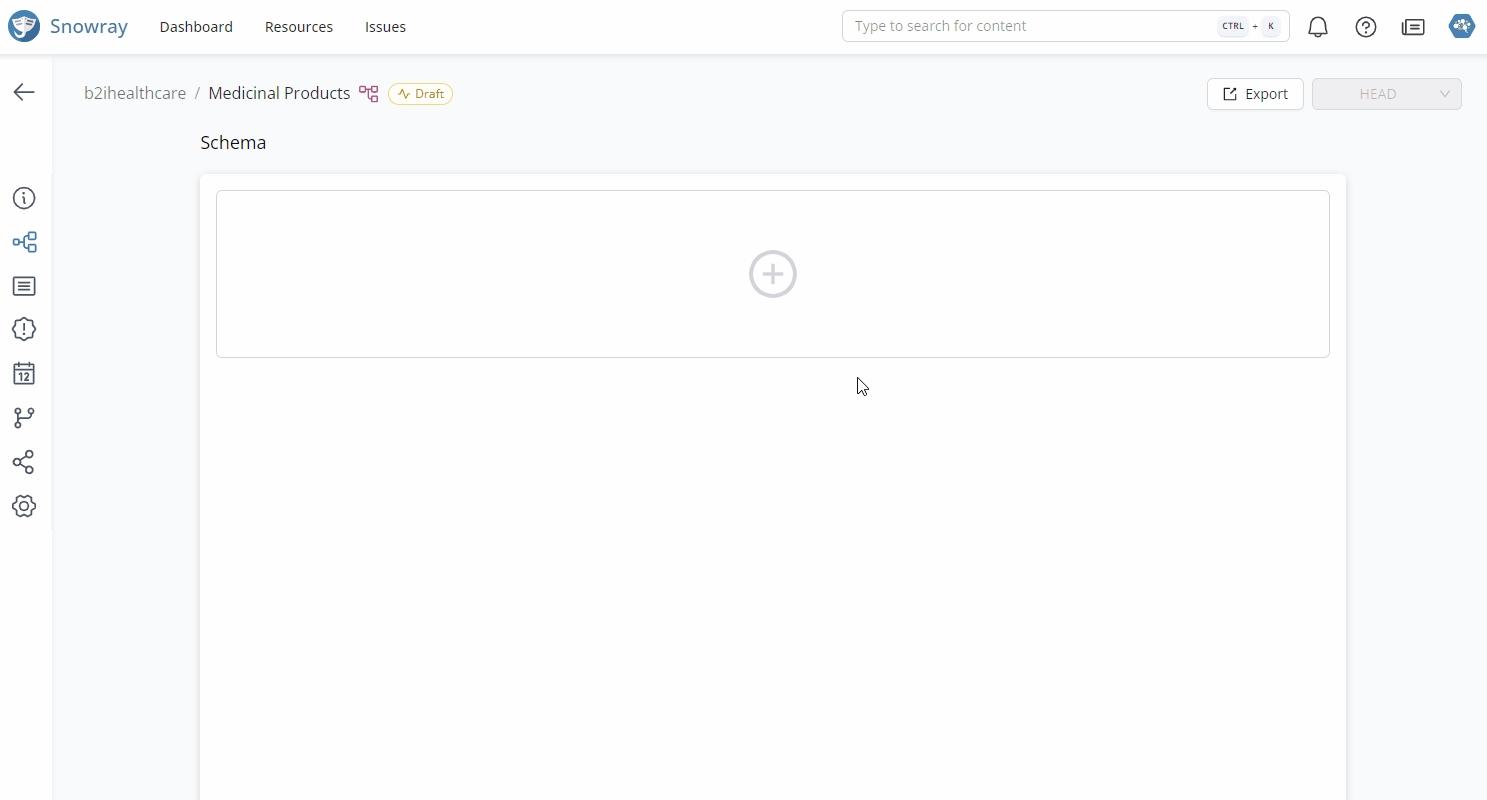

New property definitions can be added to the Code System on the Schema tab, after clicking on the button in the middle area.

Add New Property Type

The following attributes can be specified for a property definition:

Attribute
Description

Name

Unique name of the property (mandatory)

Type

Type of the property (mandatory)

Cardinality

Defines the number of elements (mandatory)

Default value

Initial value of the property

Description

Captures the purpose of the property

Once you added a property definition you can customize it by clicking in the text fields and entering an attribute value, or selecting one from the drop-down.

Changes to the property can be persisted by clicking the button.

Different property types are indicated with different colors.

Existing properties can be edited after clicking the button.

Concept

To enter editing mode and access functionalities related to authoring, click on the button in the upper right corner of the selected Code System's content page.

New concepts can be added to the Code System on the Content tab, after clicking on the button.

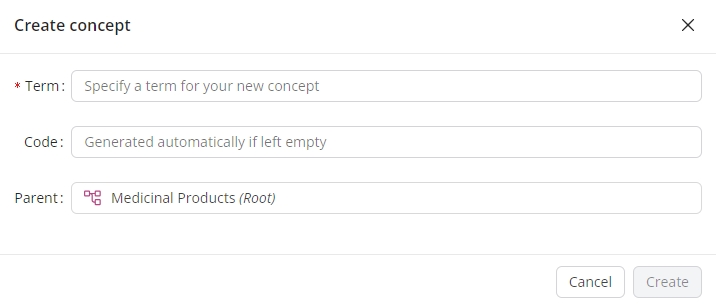

Create Code System Concept Wizard

The concept selected in the tree at the time of creation will be considered the parent concept. If no concept is selected, the new concept will be placed in the root of the Code System, i.e. not under another concept. The selected parent can be modified either in the creation wizard or even after creation, through reparenting.

Field
Description

Term

The name of the new concept (mandatory)

Code

The identifier of the new concept. If you leave this field empty, the system will automatically generate an ID for your Concept

Parent

The concept under which the new concept will be created

After pressing the button, the new concept will be added to the Code System tree and its editor will automatically open on the right side.

The preferred term of the concept - by default, the one defined during creation - is indicated with an icon.

You can specify alternative terms for a concept, and even move the preferred flag to the newly added terms.

Properties

Property types defined in the Code System Schema are automatically displayed in the concept editor. Values can be added to the properties by pressing the button.

If you specified a default value in the Schema, the property will automatically be populated with it when adding a new value.

If you restricted the potential number of values of a property, e.g. to1..1, the button won't appear and you won't be able to add more values to the given property.

Concept reparenting

The parent of a concept is specified during concept creation but it is also possible to modify the parent concept after the creation process.

Being mandatory for all concepts, the parent of a concept is considered a special property that is not maintained in the schema.

Clicking in the value field of the parent property offers a drop-down with the available concepts of the given Code System.

You can either browse the drop-down list or start typing in the value field to restrict the results, and then select the new parent.

Once the changes are accepted, the tree is updated and the concept is relocated under the new parent's node.

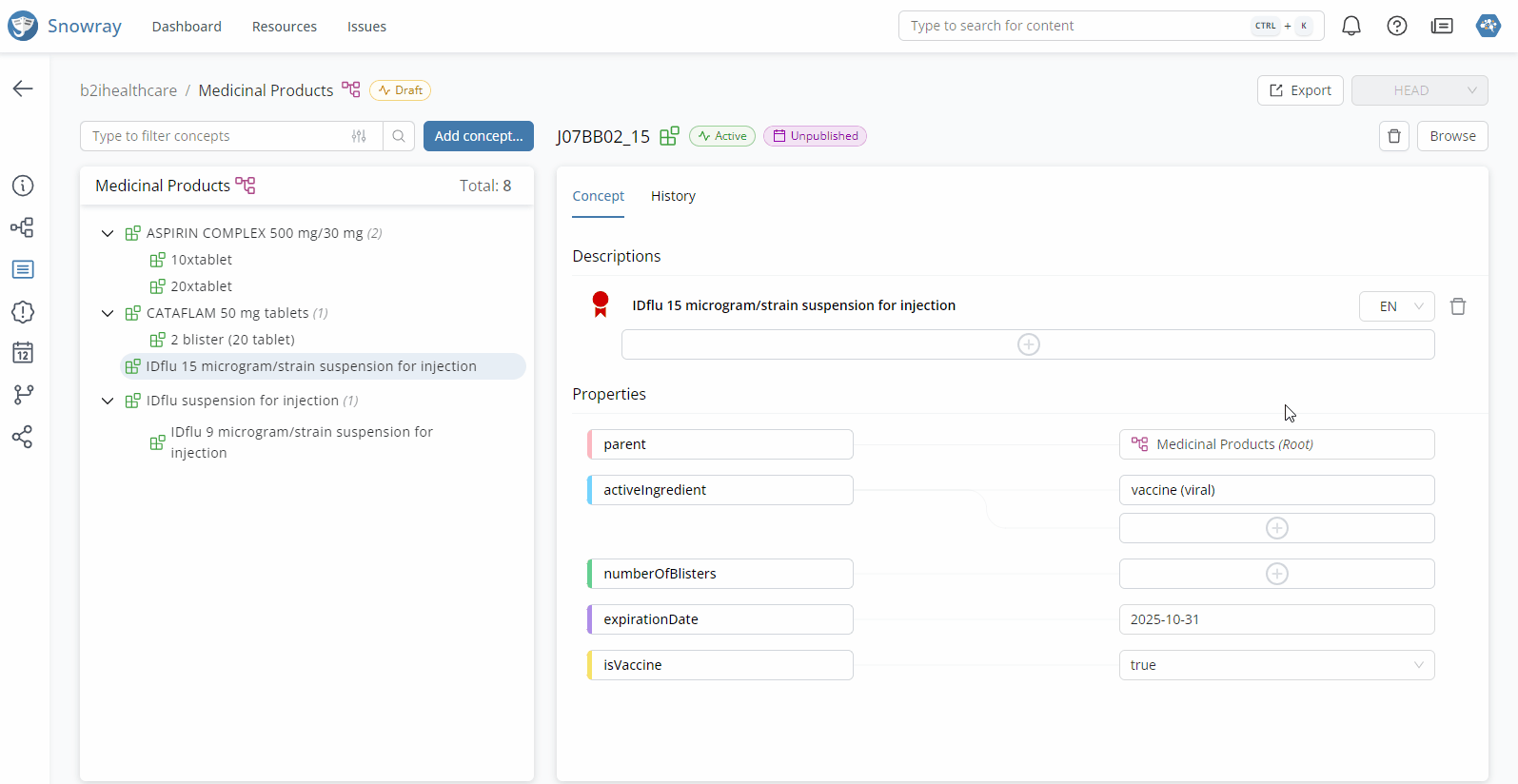

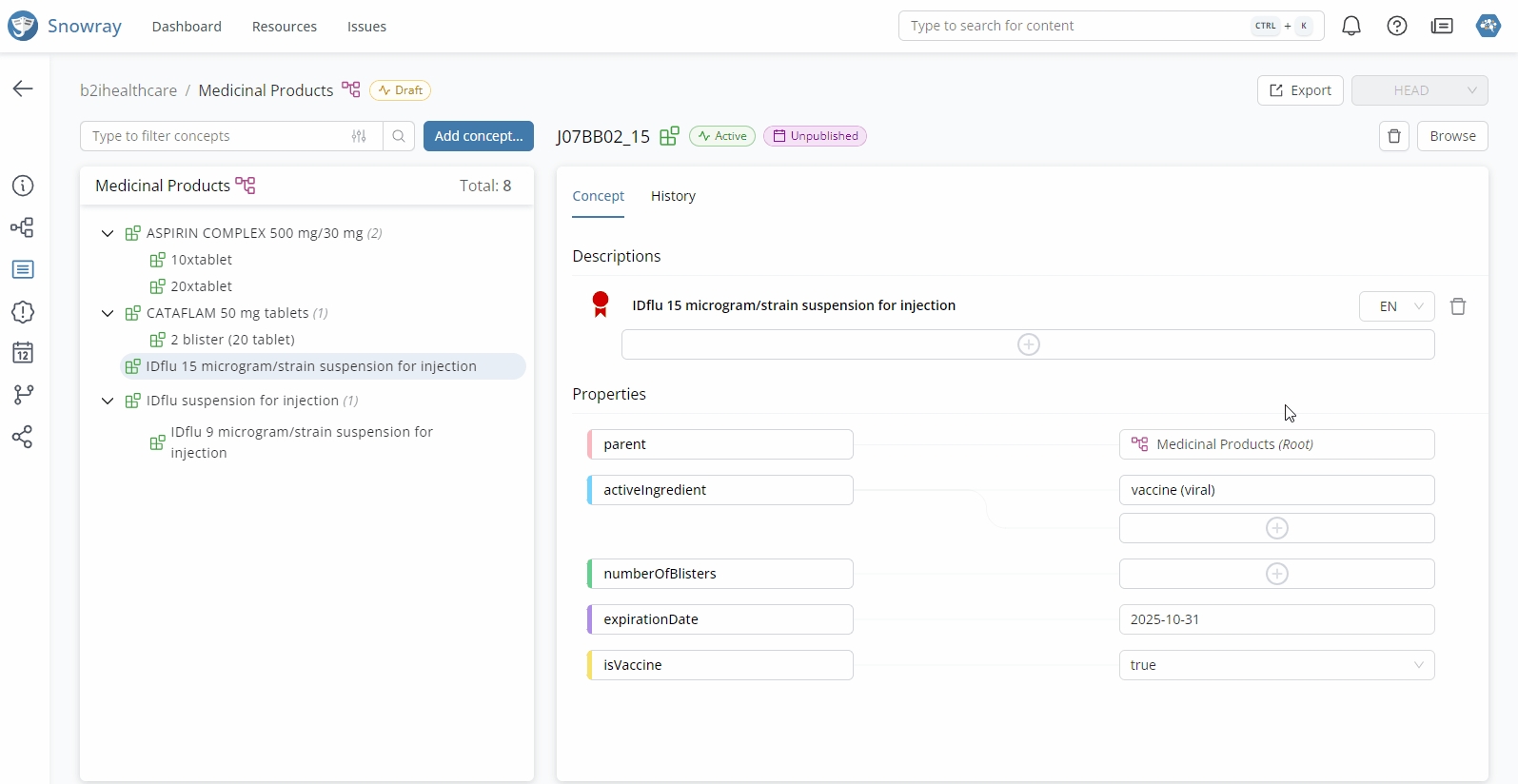

Code System Concept Reparenting

Issues

To access issue management related options, press the button.

Users can create issues related to specific Code System concepts using the Raise an issue context menu option, while existing issues can be viewed by selecting the Show issues action.

Want to find out more about issues? Visit the Issue management page for more information.
